DTH HAMMERS

DTH HAMMER- K47
A DRILLING TOOL FOR 4 3/4"(121.0mm)

A DRILLING TOOL FOR 4 3/4"

NAME OF THE ITEM	QTY	PART NO
COUPLER	1 No	K 32 121 101
CHECK VALVE	1 No	K 32 121 102
SPRING	1 No	K 32 121 103
TOP VALVE	1 No	K 32 121 104
RUBBER SPACER	1 No	K 32 121 105
PLUG	1 No	K 32 121 106
CONTROL TUBE	1 No	K 32 121 107
LOCKING PIN	1 No	K 32 121 108
PISTON	1 No	K 32 121 109
HAMMER CASE	1 No	K 32 121 110
CIRCLIP	1 No	K 32 121 111
PISTON BUSH	1 No	K 32 121 112
O RINGS	2 No	K 32 121 113
BRRING	1 No	K 32 121 114
O RING	1 No	K 32 121 115
FRONT CHUCK	1 No	K 32 121 116
SUITABLE BIT	1 No	K 22 01 47 121 FS
HAMMER ASSEMBLY	1 SET	K 32 121 100
SERVICE KIT(S.No.3,6,13,14,15)	1 SET	SK 32 121 100

HAMMER SPECIFICATIONS

DESCRIPTION	UNIT	DIM
HAMMER LENGTH (W/O) BIT	mm	983.2
HAMMER OUTER DIAMETER	mm	107.0
HOLE SIZE	mm	120-140
WRENCH SIZE A/F	mm	75.0
TOP SUB THREAD CONNECTION	---	2 3/8" API REG. 5TPI PIN
SUITABLE SHANK	----	D47
PISTON WEIGHT	kg	9.8
HAMMER WEIGHT	kg	47.4
CYLINDER BORE	mm	88.0
PISTON STROKE	mm	92.0(appro.)

AIR CONSUMPTIONS


PSI	150	250	350
CFM	305	580	855

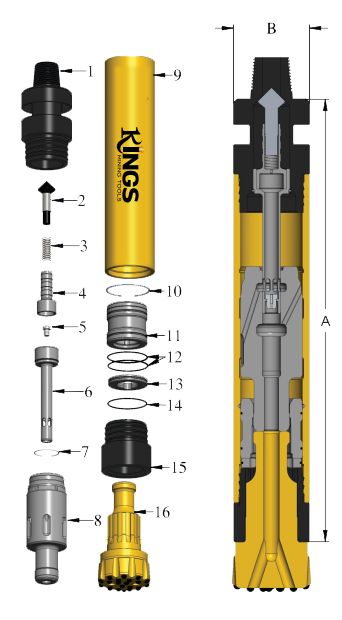

DTH HAMMER- K65
A DRILLING TOOL FOR 6.5"(165.0mm)

A DRILLING TOOL FOR 6.5"

NAME OF THE ITEM	QTY	PART NO
COUPLER	1 No	K 32 165 101
CHECK VALVE	1 No	K 32 165 102
SPRING	1 No	K 32 165 103
TOP VALVE	1 No	K 32 165 104
PLUG	1 No	K 32 165 105
CONTROL TUBE	1 No	K 32 165 106
C.T.CIRCLIP	1 No	K 32 165 107
PISTON	1 No	K 32 165 108
HAMMER CASE	1 No	K 32 165 110
CIRCLIP	1 No	K 32 165 111
PISTON BUSH	1 No	K 32 165 112
O RINGS	2 No	K 32 165 113
BRRING	1 No	K 32 165 114
O RING	1 No	K 32 165 115
FRONT CHUCK	1 No	K 32 165 116
SUITABLE BIT	1 No	K 22 01 60 165 FS
HAMMER ASSEMBLY	1 SET	K 32 165 100
SERVICE KIT(S.No.3,7,13,15)	1 SET	SK 32 165 100

HAMMER SPECIFICATIONS

DESCRIPTION	UNIT	DIM
HAMMER LENGTH (W/O) BIT	mm	920
HAMMER OUTER DIAMETER	mm	151
HOLE SIZE	mm	165-205
WRENCH SIZE A/F	mm	90.0
TOP SUB THREAD CONNECTION	---	2 7/8" API IF 4TPI PIN
SUITABLE SHANK	----	D60
PISTON WEIGHT	kg	20
HAMMER WEIGHT	kg	103
CYLINDER BORE	mm	123.0
PISTON STROKE	mm	95.0(appro.)

AIR CONSUMPTIONS


PSI	150	250	350
CFM	350	720	1100

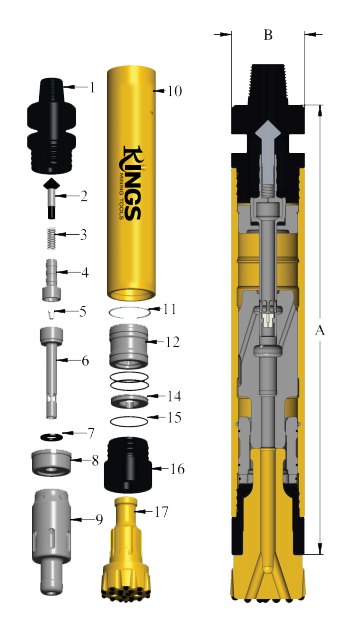

DTH HAMMER- K7
A DRILLING TOOL FOR 7"(178.0mm)

A DRILLING TOOL FOR 7"

NAME OF THE ITEM	QTY	PART NO
COUPLER	1 No	K 32 177 101
CHECK VALVE	1 No	K 32 177 102
SPRING	1 No	K 32 177 103
TOP VALVE	1 No	K 32 177 104
PLUG	1 No	K 32 177 105
CONTROL TUBE	1 No	K 32 177 106
RUBBER SPACER	1 No	K 32 177 107
C.T.COVER	1 No	K 32 177 108
PISTON	1 No	K 32 177 109
HAMMER CASE	1 No	K 32 177 110
CIRCLIP	1 No	K 32 177 111
PISTON BUSH	1 No	K 32 177 112
O RINGS	2 No	K 32 177 113
BRRING	1 No	K 32 177 114
O RING	1 No	K 32 177 115
FRONT CHUCK	1 No	K 32 177 116
SUITABLE BIT	1 No	K 22 01 60 178 FS
HAMMER ASSEMBLY	1 SET	K 32 177 100
SERVICE KIT(S.No.3,6,13,15)	1 SET	SK 32 177 100

HAMMER SPECIFICATIONS

DESCRIPTION	UNIT	DIM
HAMMER LENGTH (W/O) BIT	mm	970
HAMMER OUTER DIAMETER	mm	156
HOLE SIZE	mm	177-216
WRENCH SIZE A/F	mm	90.0
TOP SUB THREAD CONNECTION	---	2 7/8" API IF 4TPI PIN
SUITABLE SHANK	----	D60
PISTON WEIGHT	kg	21
HAMMER WEIGHT	kg	105
CYLINDER BORE	mm	127
PISTON STROKE	mm	95.0(appro.)

AIR CONSUMPTIONS


PSI	150	250	350
CFM	400	760	1125

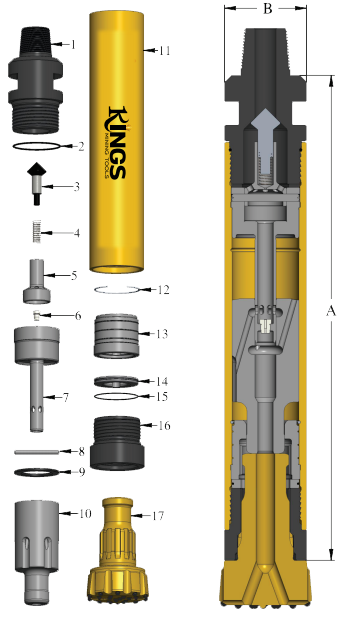

DTH HAMMER- K82
A DRILLING TOOL FOR 8.0"(202.0mm)

A DRILLING TOOL FOR 8.0"

NAME OF THE ITEM	QTY	PART NO
COUPLER	1 No	K 32 202 101
OUPLER O RING	1 No	K 32 202 102
CHECK VALVE	1 No	K 32 202 103
SPRING	1 No	K 32 202 104
TOP VALVE	1 No	K 32 202 105
RUBBER SPACER	1 No	K 32 202 106
PLUG	1 No	K 32 202 107
CONTROL TUBE	1 No	K 32 176 108
LOCKING PIN	1 No	K 32 202 109
PISTON	1 No	K 32 202 110
HAMMER CASE	1 No	K 32 202 111
CIRCLIP	1 No	K 32 202 112
PISTON BUSH	1 No	K 32 202 113
BRRING	1 No	K 32 202 114
O RING	1 No	K 32 202 115
FRONT CHUCK	1 No	K 32 202 116
SUITABLE BIT	1 No	K 22 01 80 202 FS
HAMMER ASSEMBLY	1 SET	K 32 202 100
SERVICE KIT(S.No.3,6,13,14,15)	1 SET	SK 32 202 100

HAMMER SPECIFICATIONS

DESCRIPTION	UNIT	DIM
HAMMER LENGTH (W/O) BIT	mm	1150
OUTER DIAMETER	mm	176.0
HOLE SIZE	mm	202-254
WRENCH SIZE	mm	115.0
TOP SUB THREAD CONNECTION	---	4 1/2" API REG 4TPI PIN
SUITABLE SHANK	----	S82
PISTON WEIGHT	kg	26.8
HAMMER WEIGHT	kg	147
CYLINDER BORE	mm	143.0
PISTON STROKE	mm	90.0(appro.)

AIR CONSUMPTIONS


PSI	150	250	350
CFM	400	750	1070

DTH HAMMER- K10
A DRILLING TOOL FOR 10"(254.0)

A DRILLING TOOL FOR 10"

NAME OF THE ITEM	QTY	PART NO
TOP SUB	1 No	K 32 250 101
CHECK VALVE CAP	1 No	K 32 250 102
CHECK VALVE	1 No	K 32 250 103
SPRING	1 No	K 32 250 104
AIR DISTRIBUTOR	1 No	K 32 250 105
CONTROL TUBE	1 No	K 32 250 106
BUFFER RING	1 No	K 32 250 107
METAL SPACER	1 No	K 32 250 108
LOCK PLATES	1 SET	K 32 250 109
PISTON	1 No	K 32 250 110
HAMMER CASE	1 No	K 32 250 111
GUIDE BUSH	1 No	K 32 250 112
BRRING	1 No	K 32 250 113
O RING FOR BRRING	1 No	K 32 250 114
DRIVE SUB SPACER	1 No	K 32 250 115
DRIVE SUB	1 No	K 32 250 116
BIT	1 No	K 22 01 10 254 FS
HAMMER ASSEMBLY	1 No	K 32 250 100
SERVICE KIT(S.No.2,4,7&14)	1 SET	SK 32 254 100

HAMMER SPECIFICATIONS

DESCRIPTION	UNIT	DIM
HAMMER LENGTH (W/O) BIT	mm	1175.0
OUTER DIAMETER	mm	195.0
HOLE SIZE	mm	227-305
WRENCH SIZE	mm	140.0
TOP SUB THREAD CONNECTION	---	4 1/2 API REG 5 TPI
SUITABLE SHANK	----	RK 1
PISTON WEIGHT	kg	52.5
HAMMER WEIGHT	kg	200.0
CYLINDER BORE	mm	157.3
PISTON STROKE	mm	80(appro.)

AIR CONSUMPTIONS


PSI	250	300	350
CFM	1250	1550	1850
