The DTH Hammer K47 is a highly efficient and durable down-the-hole DRILLING TOOL manufactured in India by reputable companies including Kings Mining Tools based in India. This hammer falls within the 4¾-inch (121 mm) class and is commonly used for hard rock drilling, mineral exploration, quarrying, and water well drilling. With India's rising demand for high-penetration rate tools, local manufacturers like Kings Mining Tools are leveraging advanced machining processes, precision engineering, and heat treatment to produce world-class rock drilling hammers like the DTH Hammer K47 at competitive prices.
The DTH Hammer K47 is manufactured using alloy steel components, hardened for extended wear resistance and optimized for performance in abrasive geological formations. Indian manufacturers maintain tight dimensional tolerances, ensuring compatibility with global standards. Due to their cost efficiency, aftermarket service, and availability of spare parts, Indian-made DTH DRILLING TOOL hammers have gained popularity in both domestic and international drilling markets.
Key Features and Specifications:
The DTH Hammer K47 is designed for down-the-hole (DTH) drilling rigs, offering deep hole drilling capability with high impact energy transfer. Key specifications include:
- Outer Diameter: 107 mm
- Hammer Length (without bit): 983.2 mm
- Total Weight: 47.4 kg (Piston: 9.8 kg)
- Shank Type: D47 (standardized for bit compatibility)
- Thread Connection: 2⅜″ API REG PIN (5 TPI)
- Working Pressure Range: 150–350 psi
- Air Consumption:
- 305 CFM at 150 psi
- 580 CFM at 250 psi
- 855 CFM at 350 psi

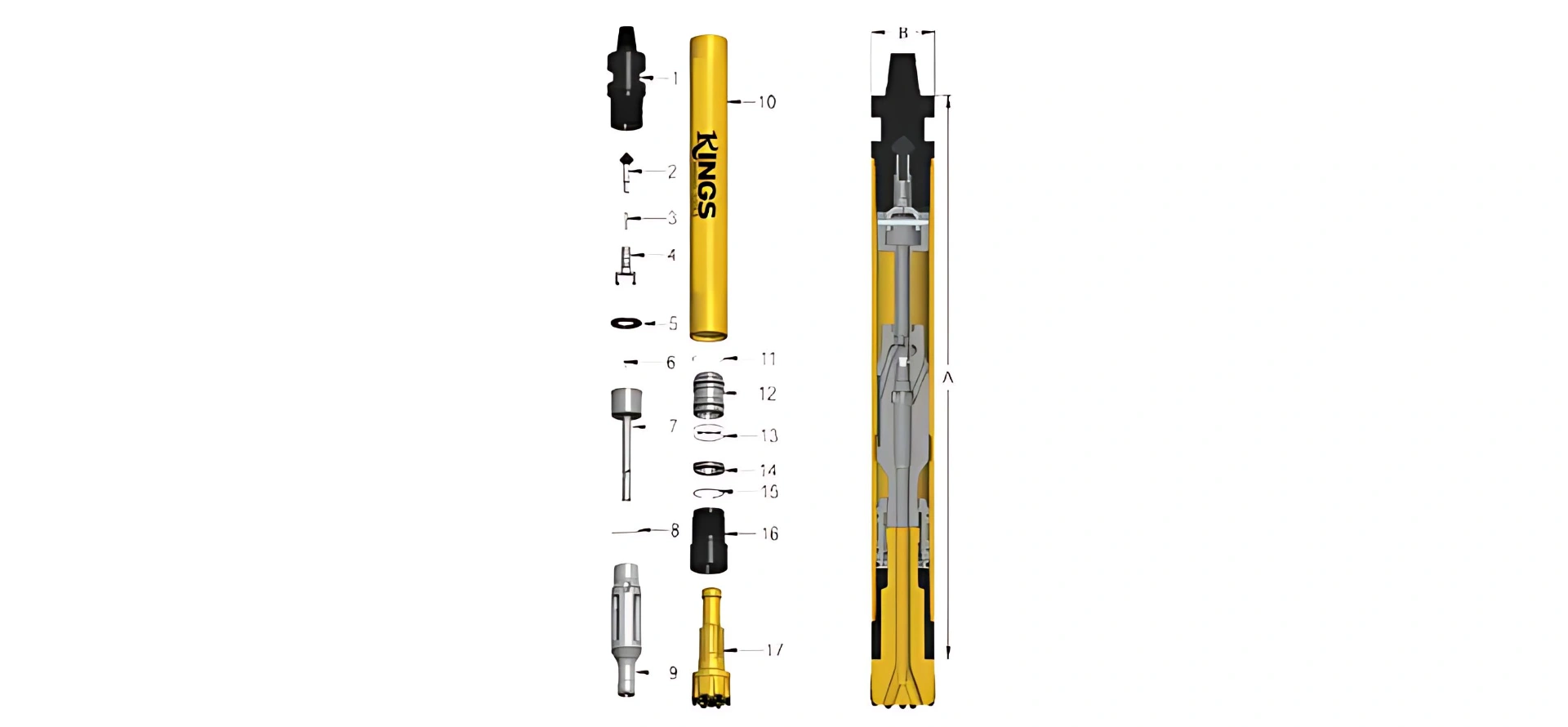

The hammer features a heavy-duty piston, non-return valve (check valve), air distribution system, front chuck, and control tube assembly—all of which are easy to service and replace. Its design supports high frequency percussion, making it suitable for high-speed drilling, borehole straightness, and depth control in challenging conditions. Brands like Kings Mining Tools ensure precision and reliability in these components.
Benefits and Uses :
The DTH Hammer K47 is ideal for various percussive drilling applications, such as:
- Mining operations (coal, iron ore, limestone)
- Geotechnical and exploratory drilling
- Water well and geothermal drilling
- Foundation and piling work
- Blasthole drilling in quarries and construction sites
It offers low air loss, high energy efficiency, and minimal deviation, which ensures faster drilling speeds and reduces operating costs. The DTH Hammer K47 also supports multi-pass reaming, making it effective for projects requiring variable hole diameters. Its rugged design makes it suitable for overburden drilling, boulder penetration, and fractured rock formations. As a trusted DRILLING TOOL, Kings Mining Tools consistently delivers these benefits.
Why the DTH Hammer – K47 is Better
The DTH Hammer K47 offers a combination of power, reliability, and versatility, which distinguishes it from other models in the same class. Unlike imported hammers that may face long lead times or high servicing costs, the DTH Hammer K47 provides local manufacturing support, spare availability, and faster turnaround for maintenance. It is compatible with various DTH DRILLING TOOL bits, including carbide button bits, concave bits, and drop center bits, commonly used in rotary-percussive drilling systems.
Its optimized internal airflow increases bit face cleaning and reduces back pressure, resulting in improved penetration rates and extended bit life. Compared to brands like Halco, Atlas Copco, or Sandvik, the DTH Hammer K47 matches in quality but excels in cost-effectiveness, ease of integration, and after-sales support.
The DTH Hammer K47 stands out as a reliable, cost-effective, and high-performance solution for a wide range of drilling applications. Manufactured in India using advanced engineering techniques and premium-grade materials, including those by Kings Mining Tools, it offers the ideal combination of drilling speed, efficiency, durability, and ease of maintenance. With its compatibility across various drill rigs and bit types, along with strong local service and spare parts support, the DTH Hammer K47 is a top choice for contractors, mining operators, and infrastructure developers alike.
